Urinals Flushing Systems

FlushSaver Urinal – Model: FS-MW-UR-S

The FlushSaver Urinal Unit is microprocessor based and incorporates an internally generated microwave field (allowing concealed installation) for sensing of users.

Features of this unit include: – External selection for flush duration, lockout and sensor range externally and infinitely adjustable (within max. and min. pre-sets), 200Kpa-1000Kpa operating pressure range, quiet water hammer free operation and customised to suit customer requirements.

Controls one Solenoid Vale (= to one cistern or 1 Flush-Pipe) Will flush up to 3 Wall Hung Urinal units or 1.8 metres of Trough Urinal. “FlushSaver Smart Toilet Systems” are available from Water Conservation Services 02 9971 1014



FlushSaver Urinal – Model: FS-MW-UR-D

The FlushSaver Urinal Unit is microprocessor based and incorporates an internally generated microwave field (allowing concealed installation) for sensing of users.

Features of this unit include: – External selection for flush duration, lockout and sensor range externally and infinitely adjustable (within max. and min. pre-sets), 200Kpa-1000Kpa operating pressure range, quiet water hammer free operation and customised to suit customer requirements.

Controls two Solenoid Vale (= to two cisterns or 2 Flush-Pipes) Will flush up to 6 Wall Hung Urinal units or 3.6 metres of Trough Urinal. “FlushSaver Smart Toilet Systems” are available from Water Conservation Services 02 9971 1014

FlushSaver Urinal – Model: Model FS-MW-UR-SDH

This model of FlushSaver allows individual Wall-Hung Urinal to flush individually. Using the specially designed horn from 3 metre ceiling the microwave bean will hit an A3 sized area on the floor. Using between .6 to.8 of a litres per flush adjustable on the Control Module.

The FlushSaver Urinal Unit is microprocessor based and incorporates an internally generated microwave field (allowing concealed installation) for sensing of users.

Features of this unit include:

  • External selection for flush duration and lockout.
  • 200Kpa-500Kpa operating pressure range.
  • Quiet water hammer free operation.
  • Customised to suit customer requirements.

Controls one Solenoid Value. “FlushSaver Smart Toilet Systems” are available from Water Conservation Services 02 9971 1014

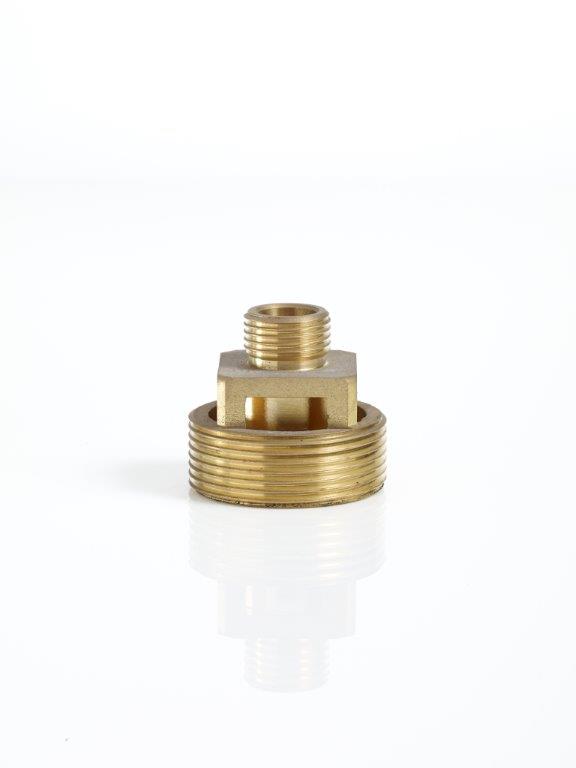

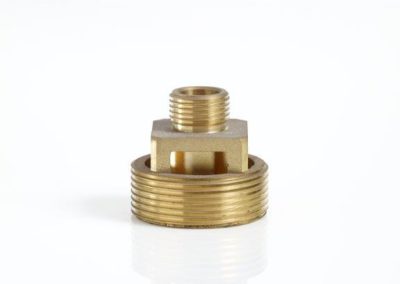

Urinal System Components

Below are the components that work behind the scenes. Built with high quality products to deliver the result you deserve.
